OEM mission magnum series sand pump
Description

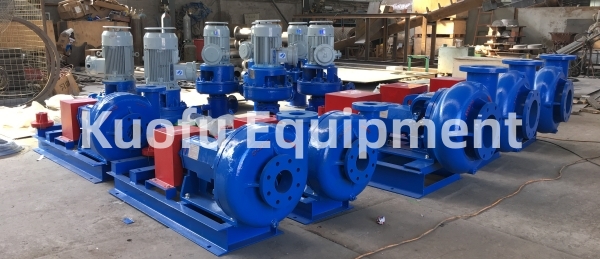

OEM NOV mission magnum I series centrifual sand pump and parts, interchangeable with mission pump,welcome to choose us.we have lower price but better quality.
| Model | 10×8×14 | 8×6×14 | 8×6×11 | 6×5×11 | 4×3 | 3×2 |
| Discharge capacity | 260～280 m3/h | 240～260 m3/h | 220～240 m3/h | 120～220 m3/h | 60 m3/h | 50 m3/h |
| Pump Head | 28~33 | 28～33m | 24～28m | 24～28m | 22～28m | 22～28m |
| Efficiency | 65% | 65% | 65% | 65% | 65% | 65% |
| Power | 75 kW | 55/75 kW | 37/45 kW | 30/37/45 kW | 11/15 kW | 7.5/11 kW |
| RPM | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
| Inlet diameter | 10″ | 8″ | 8″ | 6″ | 4″ | 3″ |
| Outlet diameter | 8″ | 6″ | 6″ | 5″ | 3″ | 2″ |
| Weight | 1150kg | 1000/1150kg | 920/1050kg | 819/887/920kg | 438/460kg | 358/400kg |
| Dimension | 2020×675×950 | 1930×650×880 | 1848×595×805 | 1770×505×835 | 1545×500×710 | 1435×485×640 |
| /200×675×950 | /1875×595×805 | /1820×585×805 | / 1585×500×710 | /1530×485×710 | ||
| /1845×585×805 |

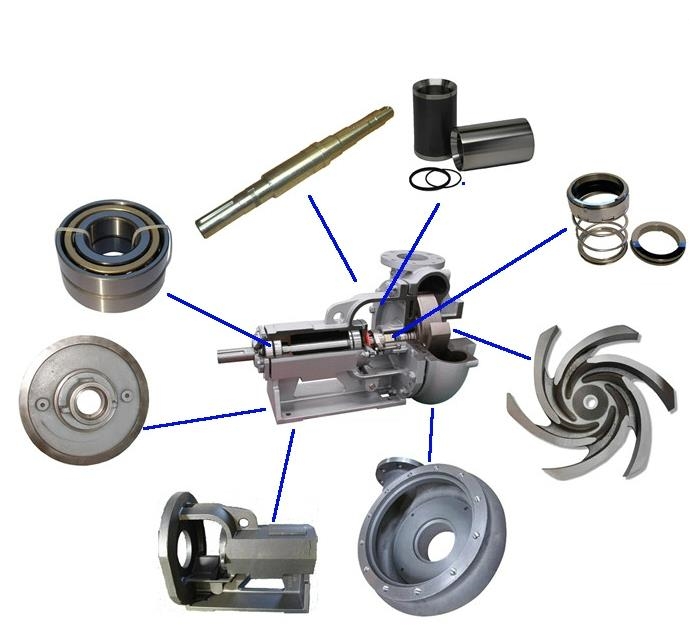

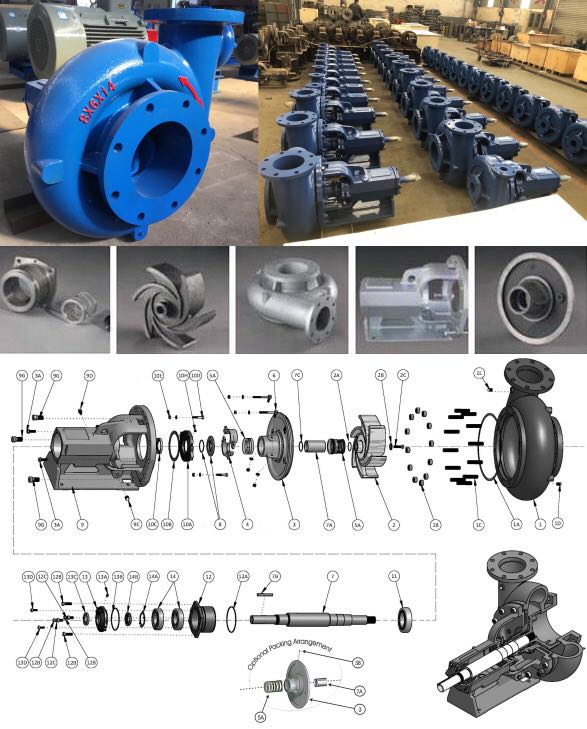

Spare Parts of Mission Centrifugal Pump
| Item | Description | P/N | Qty | Material |
| 1* | Pump shell | See below table | 1 | Hard Iron |
| 1A | Seal washer for pump shell | 10399-46-1 | 1 | Vellumoid |
| 1B | Tightening nut for pump shell 3/4 | 3932-61 | 12 | Stl |
| 1C | Tightening nut for pump shell 3/4×85 | 3862-76 | 12 | Stl |
| 1D | Square head plug 3/8 | 8505-04-01 | 1 | Stl |
| 1E | Square head plug 1/2 | 8505-04-01 | 1 | Iron |
| 2* | Impeller | See below table | 1 | Iron |
| 2A | O-ring 46.2×1.8 | 19110-72 | 1 | Viton |
| 2B | Lock washer for impeller | 1 | Stl | |
| 2C | Lock wahser for impeller | 1 | Stl | |
| 3* | Mechanical seal box | 22223-01-30 | 1 | Hard Iron |
| 3* | Packing seal box | 20614-01-30 | 1 | Hard Iron |
| 3A | Tightening nut for mechanical seal box | 3861-117 | 2 | Stl |
| 4 | Packing pressing bush | 20622A | 1 | Bronze |
| 5 | Mechanical seal | 22451-1 | 1 | Tungsten Carbide |
| 5A | Packing 12×12 | 25014-04M-B | 3 | Kevlar |
| 6 | L bolt assembly | B3701A | 2 | Stl |
| 7 | Shaft | 20612-02-33 | 1 | AISI 4140 |
| 7A | Wear bushing(Mechanical seal) | 20943-21 | 1 | AISI E7140 |
| 7A | Wear bushung (Packing seal) | 20613-21G-7A | 1 | AISI E7140 |
| 7B | Key | 4372-5-21 | 1 | 416SS |
| 7C | O-ring 51.5×2.65 | 23444-01-72 | 1 | |
| 8 | Water retaining ring | 22210-1A | 1 | Bronze |
| 8A | O-ring 63×2.65 | 1 | ||
| 9 | Bearing base | 20618-12-1 | 1 | Cast Iron |
| 9A | ||||
| 9B | ||||
| 9C | Square head plug 1/2 | 8505-05 | 1 | Iron |
| 9D | Breathing mouth | 8267-01 | 1 | Stl |
| 9E | ||||
| 9F | ||||
| 9G | Detrusion bolt for pump shell | 2538-1A | 3 | Stl |
| 10A | Inside bearing cover | 20626 | 1 | Iron |
| 10B | Seal washer for inside bearing cover | 20625 | 1 | Vefetable Fiber |
| 10C | Oil seal | 20619-01 | 2 | Buna-n |
| 10D | Bolt for inside bearing cover | 3861-1 | 2 | Stl |
| 10E | Nut for inside bearing cover | 3932-2 | 2 | Stl |
| 10F | ||||
| 10G | Alemite fitting NPT1/8 | 21641-01 | 1 | Stl |
| 11 | Inside bearing NUP313E | N/A | 1 | Vendor |
| 12 | Axial adjustment collar | 20624-01-01 | 1 | Iron |
| 12A | O-ring 140×3.55 | 7496-253 | 1 | Buna-n |
| 12B | Nut for axial adjustment collar | 3861-138 | 4 | Stl |
| 12C | Detrusion nut for axial adjustment collar | 3932-62 | 2 | Stl |
| 13 | Outside bearing | 20617-01-01 | 1 | Stl |
| 13A | Alemite fitting NPT1/8 | 1 | Stl | |
| 13B | O-ring 120×3.55 | 7496-26 | 1 | Buna-n |
| 13C | Oil seal 47.63×69.85×9.525 | 20619-02 | 1 | Buna-n |
| 13D | Bolt for outside bearing cover | 3861-139 | 2 | Stl |
| 14 | Bearing 7311B/DB | N/A | 1 | Vendor |
| 14A | Lock wahser | 6124-4 | 1 | Stl |
| 14B | Lock nut | 6123-4 | 1 | Stl |
| 1* | Pump case,3×2×13 | 19203-01-30A | 1 | Hard Iron |
| 1* | Pump case,4×3×13 | 19205-01-30A | 1 | Hard Iron |
| 1* | Pump case,5×4×11 | 19222-01-30A | 1 | Hard Iron |
| 1* | Pump case,6×5×11 | 19122-01-30A | 1 | Hard Iron |
| 1* | Pump case,6×5×14 | 19123-01-30A | 1 | Hard Iron |
| 1* | Pump case,8×6×11 | 19763-01-30A | 1 | Hard Iron |
| 1* | Pump case,8×6×14 | 19117-01-30A | 1 | Hard Iron |
| 1* | Pump case,10×8×14 | 20937-01-30A | 1 | Hard Iron |
| 2* | Impeller for pump,3×2×13 | 19204-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,4×3×13 | 19206-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,5×4×11 | 19224-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,6×5×11 | 19121-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,6×5×14 | 19121-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,8×6×11 | 19121-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,8×6×14 | 19116-XX-30 | 1 | Hard Iron |
| 2* | Impeller for pump,10×8×14 | 21867-XX-30 | 1 | Hard Iron |
| xx or A0 - Impeller code - First is equal to the integer of impeller diameter(inch) - 4. Thus 10 =6,9=5,8=4,etc...14 Use alphabet A. | ||||
|
Second X is the magnification of 1/8.Thus 1/8=1,1/4=2,1/2=4,etc...thus a impeller code of 10.5 is 64,impeller code of 12 is 80, impeller code of 13.25 is 92 etc. |
||||
Kuofu® offers a complete line of centrifugal sand pumps to suit for all kinds of drilling sand pump application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23 to 14x12x22b. Bare pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.
The model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.
The Mission MAGNUM I has been engineered for the toughest jobs in drilling, production, well-servicing, and industrial applications.
The revolutionary design of the MAGNUM I provides supreme-duty performance in all types of fluid pumping operations. Although it offers greater capacity and higher heads, the MAGNUM I remains the competitive pump of choice for aggressive applications.
The MAGNUM I is more powerful, more durable, and easier to maintain than any conventional pump in use today.
The Magnum has an open impeller design that contains wide-tipped vanes and a more tangential circumference of the suction allowing the pump to create a smoother flow pattern when handling abrasive fluids. The Magnum is available in hard iron, stainless steel, and aluminum bronze fluid ends. The pumps can be unitized with electric motors, diesel engines, and hydraulic motors (horizontal, vertical, or close-coupled configuration).
Also available, Horizontal and Vertical Close Coupled Magnum.
Design features:
• Up to 50% more capacity from the 8 x 6 pump
• Optimum pressure at low operating speeds
• Thicker casing to extend life from wear and corrosion
• New impeller design to reduce loads and extend bearing life
• Larger, stronger shaft to reduce deflection
• Replaceable shaft sleeve in packing wear area
• Larger, long-life bearings
• Replaceable stuffing box cover
Specifications
• Sizes from 3x2x13 to 10x8x14
• Flow rates from a few gallons per minute up to 2,600 GPM
• Head pressure up to 550 feet
• Best utilized for applications requiring up to 200 HP
