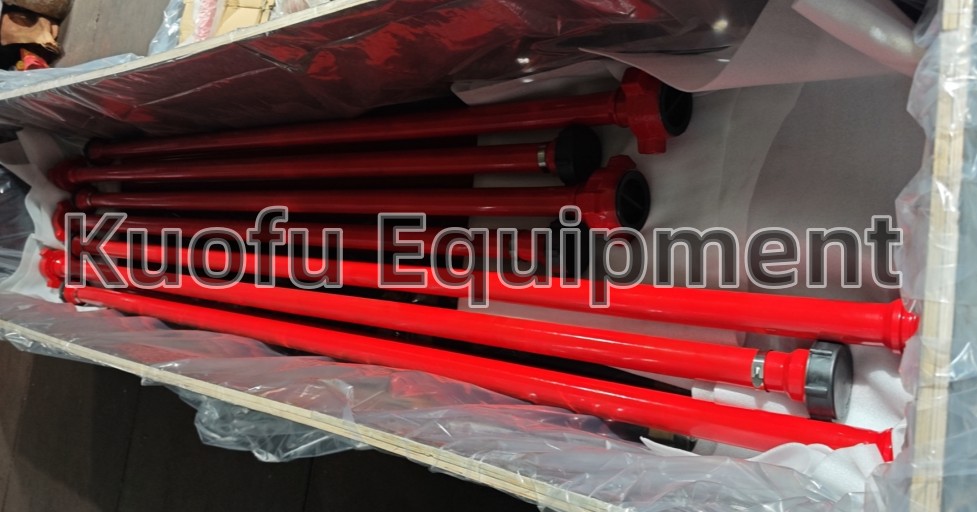

Fig1502 Pup joint
Kuofu Equipment API 16C Pup Joint are compatible with FMC Chiksan Pup Joints and SPM Pup Joints and other major brands.
API high pressure straight pipes with a thread, flange or union connectors on both ends, and widely used for petroleum drilling
&production, cementing & fracturing and testing operation. With straight tubes with union connections on both ends, high pressure
straight pipes are widely used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance
manifold and test manifold.
PRODUCT SPECIFICATIONS
Other related products
Swivel joints, pup joints, hose loops, plug valves, integral fittings, hammer unions,elbow,relief valve,FC valve,wkm valve etc.
API high pressure straight pipes with a thread, flange or union connectors on both ends, and widely used for petroleum drilling
&production, cementing & fracturing and testing operation. With straight tubes with union connections on both ends, high pressure
straight pipes are widely used for transporting high pressure flow in fracturing manifold, cementing manifold, maintenance
manifold and test manifold.
PRODUCT SPECIFICATIONS
|
Product Name
|
Pup joints
|
|||
|
Material
|
Alloy Steel
|
|||
|
Color
|
customer's requirement
|
|||
|
Standard
|
API 16C & NACE MR 0175
|
|||
|
Working Pressure
|
2000PSI~20000PSI
|
|||
|
Size
|
1"~4"
|
|||
|
Pipeline length
|
0.5m ～ 10m
|
|||
|
Connection
|
Flange,Welding,Union
|
|||
|
Working Medium
|
oil,natural gas and gas containing H2S,CO
|
|||
|
Compatible
|
SPM / FMC
|
|||
|
Description
|
End Connection
|
Cold WP
|
Diameter (inch)
|
|||
|
1-1/2″
|
2″
|
3″
|
4″
|
|||
|
Integral Pup Joints
|
FIG 602
|
(6,000psi 42Mpa)
|
y
|
y
|
y
|
|
|
FIG 1002
|
10,000psi (70Mpa)
|
y
|
y
|
y
|
|
|
|
FIG 1502
|
15,000psi (105Mpa)
|
y
|
y
|
y
|
|
|
|
Integral Pup Joints for sour gas service
|
FIG 602
|
5,000psi (35Mpa)
|
y
|
y
|
y
|
|
|
FIG 1002
|
7,500psi (53Mpa)
|
y
|
y
|
y
|
|
|
|
FIG 1502
|
10,000psi (70Mpa)
|
y
|
y
|
y
|
|
|
|
Welded Pup Joints
|
FIG 602
|
6000psi (42Mpa)
|
|
y
|
y
|
y
|
|
FIG 1002
|
10,000psi (70Mpa)
|
y
|
y
|
y
|
y
|
|
|
FIG 1502
|
15,000psi (105Mpa)
|
y
|
y
|
y
|
y
|
|
