Fig1502 Swivel Joint style 10

Fig1502 Swivel Joint style 10
info@kuofuequipment.com

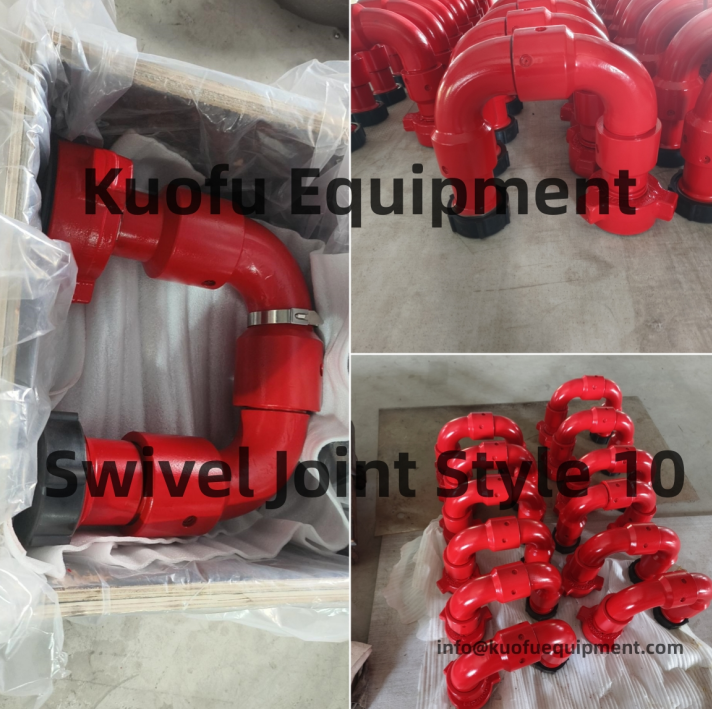

swivel joint fig1502

Chiksan swivel joints are available from stock in nine basic styles or configurations. These styles permit 360-degree
rotation and movement in one, two, or three planes. They can be combined in an unlimited variety of ways to suit
practically any installation. All Chiksan swivel joints are assembled using two or more standard pieces.

Name buckling size cold working press Terminal connection type Buckle model Model
Long Sweep
Swivel Joint

1½"
2"
3 "
4 "


42Mpa(6000psi)
70Mpa(10000psi)
105Mpa(15000psi)

 screw thread(Tr100×12)
screw thread(Tr110×8)		 10 type
20 type
30 type
40 type
50 type
60 type
70 type
80 type
90 type
100 type
fig602
fig1002
fig1502		 M×M
M×F
F ×F
Remark: 1.The connection type of swivel joints can be design as users' needs
               2."F"-threaded joint,"M"-sphere joint
               3.How to place an order:3"×105Mpa(15000psi)-fig1502(F×M)-type10

Swivel Joint repair kits
Kuofu Equipment's swivel joint repair kits Includes grease retainer, O rings, packing, internal circlip, ball stopper, steel ball, oil plug and etc..Used in swivel Joint
Can interchangable with SPM/FMC Brand
