HT400 Triplex Plunger Pump And Parts

HT400 Triplex Plunger Pump And Parts

HT400 Triplex Plunger Pump And Parts

Description

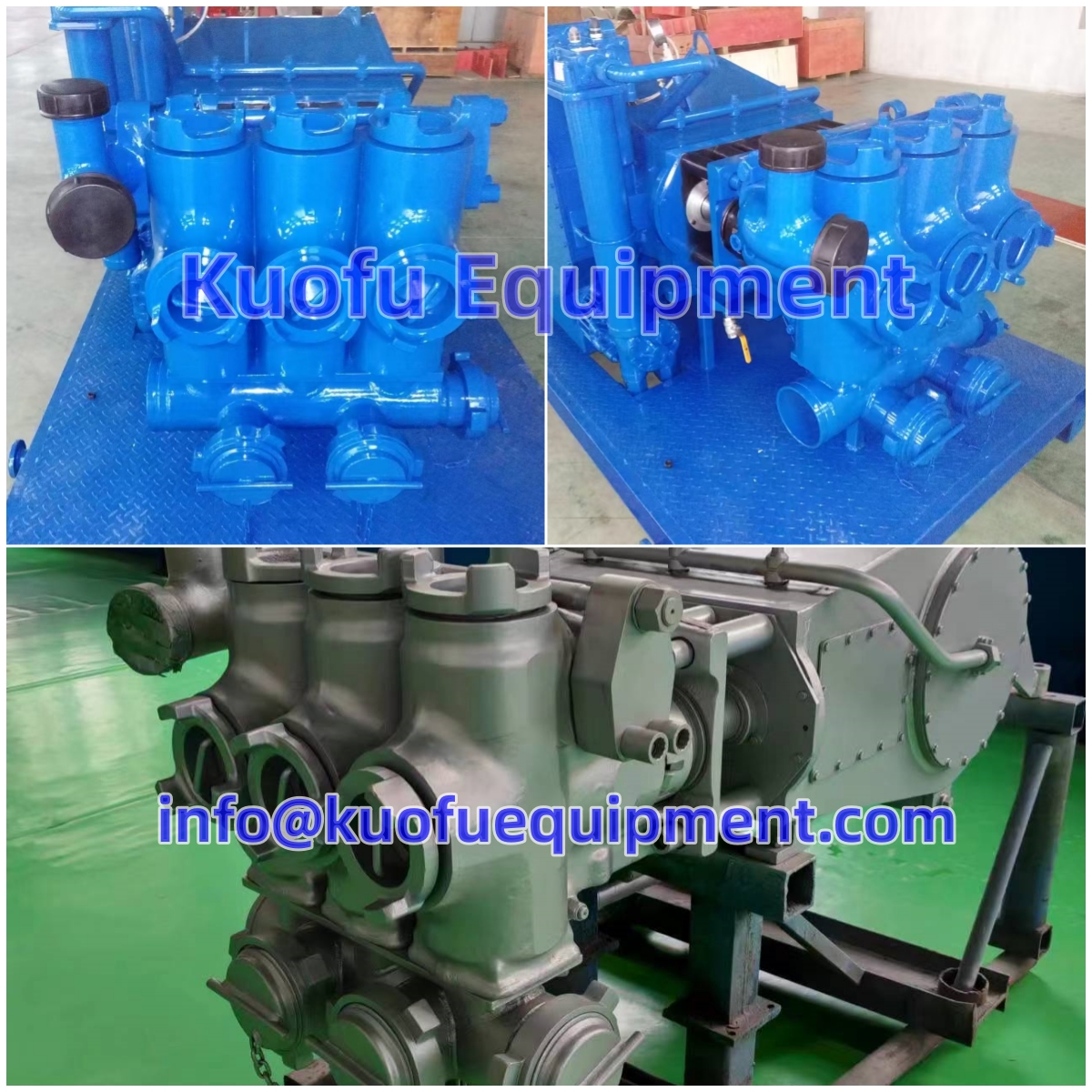

Features of  HT400 Triplex Plunger Pump

Stroke length: 8 inches
Rated Max. Brake HP : 600BHP (447KW)
Maxim Input Torque: 9782N.m
Gear Ratio:  8.6:1
Pump Weight: 6500lbs approx.
Fluid end sizes available in plunger diamater: 3 3/8” (85.7mm),  4” (101.6mm), 4.5” (114.3mm), 5” (127.0mm)


1. Alloy steel fluid end is produced by die forge vacuum smelting.
2. Large modulus quintuple worm gear pair, lager scale composite bearing, super-hardness forged aluminum connecting rod, inner gearing oil pump.
3. Well apply to truck mounted, van truck mounted and skid mounted cementing unit. It has been marketed in China, the U.S, Mexico and Singapore.
4. It is better suited for the cementing unit which service at sea and in desert.

PLUNGER

DIAMETER

DISPLACE

 PER REV

DISPLACEMENT AT PUMP STROKES PER MINUTE/ PINION RPM

32/275



32/275



Inch    (mm)

Gallon/Rev

(Liter/Rev)

GPM

(LPM)

Inch    (mm)

Gallon/Rev

(Liter/Rev)

GPM

(LPM)

Inch    (mm)

Gallon/Rev

(Liter/Rev)

GPM

(LPM)

Inch    (mm)

Gallon/Rev

(Liter/Rev)

GPM

(LPM)

3 3/8 ”
(85.7)

0.93
(3.52)

29.7
(104)

20,000
(137.9)

64.7
(244.8)

14,314
(98.6)

118.8
(449.8)

7,789
(53.7)

158.7
(600.8)

5,832
(40.2)

227.0
(859.2)

4,078
(28.1)

4 ”
(101.6)

1.31
(4.94)

41.8
(158)

14,000
(96.5)

91
(344)

10,190
(70.3)

167
(632)

5,545
(38.2)

223
(844)

4,152
(28.6)

319
(1206)

2,903
(20.0)

4 1/ 2 ”
(114.3)

1.65
(6.25)

53
(200)

11,200
(77.2)

115
(435)

8,051
(55.5)

211
(800)

4,381
(30.2)

282
(1067)

3,280
(22.6)

403
(1527)

2,294
(15.8)

Input power: horsepower (Kw)

346(257)

600(447)

600(447)

600(447)

600(447)



Kuofu Equipment offers a full range of pump parts and expendables including fluid ends, valves, seats, and plungers for virtually all makes of pumps.

We can provide right fracturing and cementing plunger pump replacement parts for Halliburton, Weir SPM, Gardner Denver, FMC, SJ.

Fluid Ends

Plungers

Valves and Seats

Packings

Stuffing Box

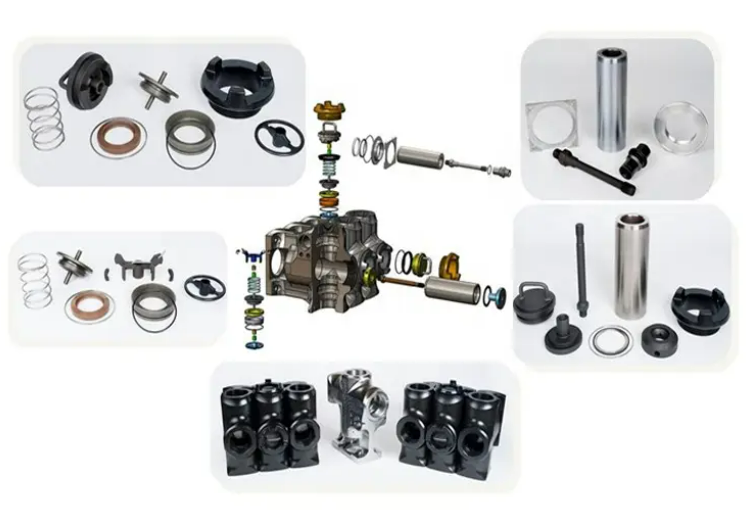

We specialize in following Halliburton HT-400 plunger parts as follow:


Push Rod Subassembly
  Part No.
Retainer,Push Rod HT-400TM, Two Piece Nose, L-Spacer 316.21066.
O-Ring, 90 Duro, 1 7/8 × 1 5/8 × 1/8, 568-223 8.34020.
Tie Rod, Push Rod, L-Spacer, HT-400TM 316.25166.
Push Rod, Two Piece, L-Spacer, HT-400TM 316.21065.
Retainer, Push Rod Seal Housing, L-2 Spacer, HT-400TM 316.10012.
Housing, Push Rod Seal, Floating, L-2 Spacer, HT-400TM 316.10013.
O-Ring, 70 Duro, 5 11/16 × 5 1/2 × 3/32, 568-161 70.33739.
Seal, Push Rod, L-Spacer, HT-400TM 316.10014.

Fluid-end/flange discharge section subassembly
  Plunger Size
  3-3/8 inch 4-inch 4-1/2 inch
Flange, discharge, HT-400TM, BLANK   316.22980. 316.22980.
Flange, discharge, HT-400TM, CURVED, Rright Hand 316.21676. 316.23019. 316.23019.
Flange, discharge, HT-400TM, CURVED, Left Hand 316.21677. 316.23017. 316.23017.
Seal, Discharge passage,HT-400TM 315.27117. 316.2547. 316.2547.
Nut, 1-14NF, Internal Wrenching, 1.03 TL 316.11621. 316.11621. 316.11621.
Stud, HT-400TM Fluid End To Thick Discharge Flange 316.23013.   316.23013.
Bolt, Tie, 1.375-12 UNF×32.4 in.,Top, Fluid End, HT-400TM, TC 316.27488. 316.27488. 316.27488.
Nut, Top Tie Bolt, HT-400TM, TC 316.25501. 316.25501. 316.25501.
Washer, Hardened,2.31 O.D ×1.43I.D.,For Top Tie Boldt, 316.22493. 316.22493. 316.22493.
Spacer, Inner, Discharge Passage Seal,HT-400TM 316.2145. 316.2545. 316.2545.
Fluid End Section, HT-400TM PUMP,Not Sleeved 316.21951. 316.22982. 316.23951.
Nut, Elastic, Stop,3/4-in.,16 NF 70.32760.   70.32760.

Discharge Valve Subassembly
  Plunger Size
  3-3/8 inch 4-inch 4-1/2 inch
Retainer, Cover, HT-400TM 316.2102. 316.2202. 316.2202.
Cover, Discharge, Double Guided Valve, HT-400TM 316.2107. 316.23091. 316.23091.
Gasket, Discharge Valve & Cylinder Head Cover, HT-400TM 316.21052. 316.22052. 316.22052.
Ring, Spacer, Discharge Valve & Cylinder Head Cover, HT-400TM 316.21051. 316.22051. 316.22051.
Liner, Two Piece Bushing, Valve Guide, HT-400, Brass 316.22005. 316.22005. 316.22005.
Insert, Two Piece Bushing, Valve Guide, Special, HT-400 316.22004. 316.22004. 316.22004.
Spring, Valve, HT-400TM, 36lb/in 316.2108. 316.2108. 316.2308.
Valve, HT-400, Frac 316.21007. 316.21007. 316.22048.
Insert, Valve, HT-400TM, Urethane, Acid/Frac Service(Yellow) 316.21048. 316.21048. 316.22046.
Insert, Valve, HT-400TM, Urethane, Standard Service(Brown) 316.21006. 316.21006. 316.22049.
Seat Valve, HT-400TM, Tapered 316.21008. 316.21008. 316.210047.
O-ring, 90 Duro 8.34037. 8.34037. 8.34041.

Suction Valve Subassembly
  Plunger Size
  3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Stop and Spring, HT-400TM, Mach. Cast 316.22977. 316.22977. 316.22242. 316.25840. 316.25840.
Boot, Suction and Stop, HT-400TM 316.25233. 316.25233. 316.25233. 316.25233. 316.25233.
Spring, Lock, HT-400 316.2125. 316.2125. 316.22252. 316.22253. 316.22253.
Liner, Two Piece Bushing, Valve Guide, HT-400TM, Brass 316.22005. 316.22005. 316.22005. 316.22007. 316.22007.
Insert,Two Piece Bushing, Valve Guide, Special,HT-400TM 316.22004. 316.22004. 316.22004. 316.22006. 316.22006.
Retainer Guide Bushing, HT-400, Tapered Seat Bore 316.21096. 316.21096. 316.23953. 316.24043. 316.24043.

Plunger/cylender Head Cover Subassembly
  Plunger Size
  3-3/8 inch 4-inch 4-1/2 inch 5-inch 6-inch
Retainer, Cover HT-400TM 316.2102. 316.2102. 316.2202. 316.2502. 316.2506.
Cover, Cylinder Head, HT-400TM 316.2107. 316.2107. 316.2207. 316.2407. 316.2507.
Gasket, 4 Discharge Valve & Cylinder Head Cover 316.21052. 316.21052. 316.22052. 316.25052. 316.25074.
Ring, Spacer, Discharge Valve & Cylinder Head Cover 316.21051. 316.21051. 316.22051. 316.25051. 316.25073.
Nose, Plunger, HT-400TM 316.2131. 316.2231. 316.2331. 316.2331. 316.2331.
Seal, Plunger Nose Assembly, HT-400TM 316.2130. 316.2230. 316.2330. 316.2330. 316.2330.
Plunger, Hard Surface, L-Spacer, HT-400TM 316.21026. 316.22294. 316.23085. 316.24296. 316.25162.
Tie Rod, Plunger, HT-400TM 316.21028. 316.21028. 316.21028. 316.25165. 316.25165.
Adapter, Pushrod, HT-400TM, Two Piece Nose 316.21059. 316.22302. 316.23089. 316.24336. 316.25172.
