F-Series Drilling Mud Pumps and parts
Description

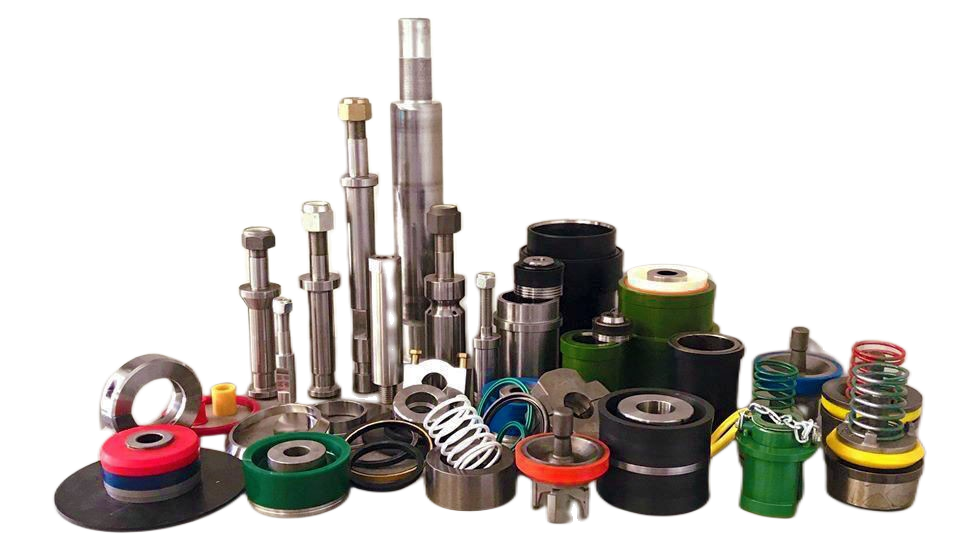

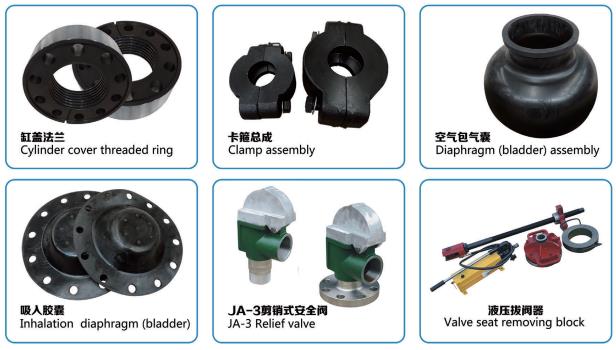

We provide : bi-metal and ceramic liner, piston, valve body, valve seat, valve insert, piston rod, extension rod, cylinder head, valve cover, cylinder cover, pulsation dampener, V-belt and so on. We can also provide the complete mud pump and pump package to our clients.
All parts are compatible and interchangeable with domestic and foreign brands including BOMCO, EMSCO, Gardner Denver, National, Oilwell, IDECO, Skytop/Brewster, OPI, Wirth, Wilson, Gaso, etc.
The available pump models are F Series (BOMCO, EMSCO and LSNOW), 3NB/F Feries (HongHua), P Series (National), PZ Series (Gardner-Denver), A Series (Oilwell), T Series (Ideco), TFI-F Series, RG-F Series, RS-F Series, RL-F Series, TSC-F Series, SPM TWS 600S, TWS 1000, TWS 2250, TWS 2500 and etc.
F-Series Mud Pumps feature an advanced and durable design with interchangable suction and discharge valves, dual lubrication system, low-speed long strong operation and an independant fluid end. This makes this mud pumps ideally suited for medium deep wells.
Features
· Low-speed Long Strong design lengthens liftetime of vunerable fluid related parts.
· Forced and splash lubrication for more effective lubrication.
· Advanced durable design ensures smooth operation.
· Meets the special requirements required if you wish to drill medium deep wells.
· Interchangable and compact suction and discharge valves.
· Fluid end is independent making examination and maintenance more convenient.

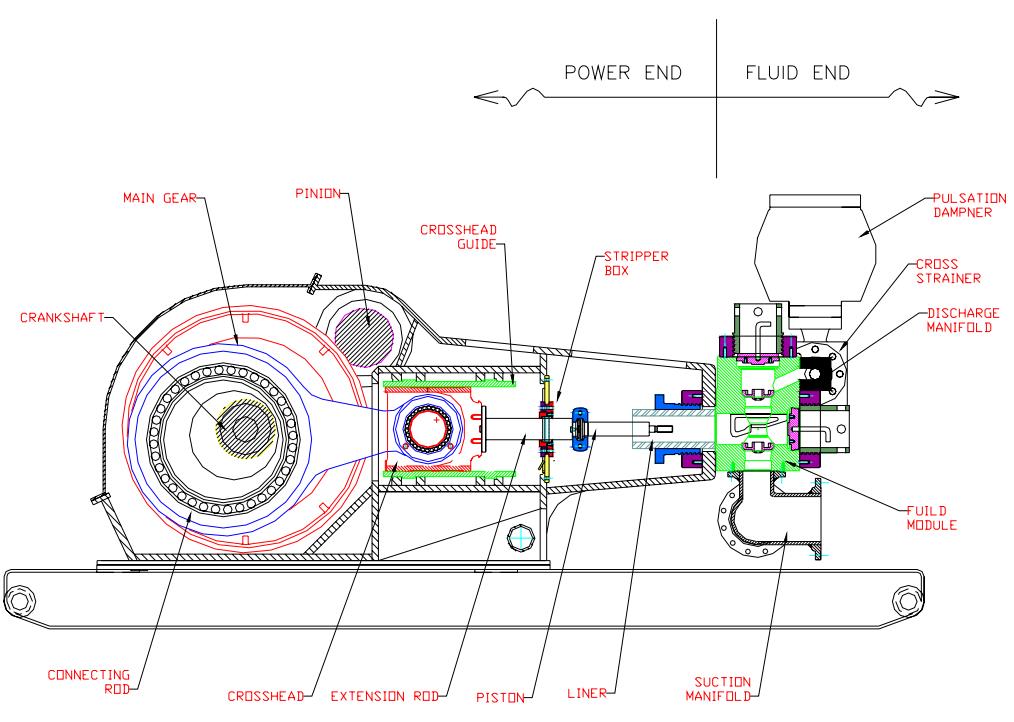

Components of Series F Mud Pumps
Specifications of Series F Mud Pumps
| Model | F-500 | F-800 | F-1000 | FB-1300 | FB-1600 | FC-2200 | |
| Max. input power | HP | 500 | 800 | 1,000 | 1,300 | 1,600 | 2,200 |
| kW | 373 | 597 | 746 | 969 | 1,193 | 1,641 | |
| Rated speed (spm | 165 | 150 | 140 | 120 | 120 | 100 | |
| Max. ID of cylinder liner | in | 6 3/4 | 6 3/4 | 6 3/4 | 7 | 7 | 8 |
| mm | 171 | 171 | 171 | 177.8 | 177.8 | 203 | |
| Stroke | in | 7 1/2 | 9 | 10 | 12 | 12 | 15 |
| mm | 191 | 229 | 254 | 304.8 | 304.8 | 381 | |
| Test hydraulic pressure of hydraulic cylinder | psi | 7,500 | 7,500 | 7,500 | 7,500 | 7,500 | 7,500 |
| kg/cm2 | 527 | 527 | 527 | 527 | 527 | 527 | |
| Gear ratio | 4.38:1 | 4.31:1 | 4.32:1 | 4.31:1 | 4.3:1 | 4.27:1 | |
| Dia. of suction pipe in | 8 | 10 | 12 | 12 | 12 | - | |
| Dia. of discharge pipe in | 4" | 5" | 5" | 5" | 5" | - | |
| Specifications of valves | API 5 | API 6 | API 6 | API 7 | API 7 | API 8 | |
| Weight (excl. belt wheel) | lbs | 19,900 | 26,603 | 33,770 | 45,650 | 46,820 | 79,600 |
| Kg | 9,027 | 12,067 | 15,318 | 20,707 | 21,238 | 36,108 | |
F-1000 Mud pump technical specification
| Type | Horizontal 3-cylinder single role piston pump | Pinion spidle dia(mm/in) | 177 8/7" | ||||
| Rated input power (KW/HP) | 738/1000 | Pinion spindle outside prolonged length | 340/133/8" | ||||
| Rated stroke (time/min) | 140 | Chain connection size | 50.8x25.4x2" x1" | ||||
| Stroke length (mm/in) | 254/10" | Valve cavity dimension | AP1-6" | ||||
| Gear type | Herringbone gear | Static hydraulic strength test |
Mpa 68.6 kgf/cm2 700 |
||||
| Gear driving ratio | 4.207:1 | Profile dimension (LxWxH) |
mm 4120x2260.6x1778 inch 1623/8" x89" x70" |
||||
| Suction side connection dimension | 12" (305mm) flange | Base width (mm/in) | 1600/63" | ||||
| Discharge side connection dimension | 51/8" flange (5000AP) | The main machine weight (kg/pound) | 18790/41425 | ||||
| Cylinder bush internal hole dia(mm) | Ø170 | Ø160 | Ø150 | Ø140 | Ø130 | ||
|
Mpa(kgf/cm2) Rated pressure Mpa(kgf/cm2) |
16.46 (168) |
18.59 (190) |
21.18 (216) |
24.27 (247 |
28.19 (287) |
||
| Stroke rate (Stroke/Min) | Power | Displacement (L/S) | |||||
| KW | HP | ||||||
| 150 | 791 | 1070 | 43.26 | 38.30 | 33.62 | 29.33 | 25.25 |
| 140 | 738 | 1000 | 40.39 | 36.76 | 31.39 | 27.39 | 23.58 |
| 130 | 686 | 929 | 37.52 | 33.22 | 29.16 | 25.45 | 21.91 |
| 120 | 646 | 857 | 35.34 | 31.29 | 27.47 | 23.97 | 20.63 |
| 110 | 580 | 786 | 31.75 | 28.11 | 24.67 | 21.53 | 18.53 |
| 100 | 527 | 714 | 28.84 | 25.53 | 22.41 | 19.56 | 16.84 |
| 1 | 0.2884 | 0.2553 | 0.2241 | 0.1956 | 0.1684 | ||
F-1300 Mud pump technical specification
| Type | Horizontal 3-cylinder single role piston pump | Gear Type | Herringbone gear | |||||
| Rated input power (KW/HP) | 969/1300 | Gear driving ratio | 4.206:1 | |||||
| Rated stroke (time/min) | 120 | Lubrication | Forced and flashing | |||||
| Stroke length (mm/in) | 305/12" | Valve cavity | AP1-7# | |||||
| Suction side connection dimension | 12" (305mm) | Discharge side connection dimension | 5" Flange 5000psi | |||||
| The main machine weight (kg/pound) | 24572/54170 | The max. diameter of cylinder | Ø180/7" | |||||
| Stroke/Min. | Cylinder bush internal hole dia | Ø180 | Ø170 | Ø160 | Ø150 | Ø140 | Ø130 | |
| Rated pressure |
18.7 (2720) |
21.0 (3050) |
23.7 (3440) |
27.0 (3915) |
31.0 (4495) |
34.5 (5000) |
||
| Rated power | Displacement(L/S) (GPM) | |||||||
| KW | HP | |||||||
| 130 | 1050 | 1408 |
50.42 (799) |
44.97 (713) |
39.83 (631) |
35.01 (555) |
30.50 (483) |
26.30 (417) |
| 120 | 969 | 1300 |
46.54 (737) |
41.51 (658) |
36.77 (583) |
32.32 (512) |
28.15 (466) |
24.27 (385) |
| 110 | 889 | 1192 |
42.66 (676) |
38.05 (603) |
33.71 (534) |
29.62 (469) |
25.81 (409) |
22.25 (352) |
| 100 | 808 | 1083 |
38.78 (614) |
34.59 (548) |
30.64 (485) |
26.93 (427) |
23.46 (372) |
20.23 (320) |
| 90 | 727 | 975 |
34.90 (553) |
31.13 (493) |
27.58 (437) |
24.42 (384) |
21.11 334) |
18.21 (288) |
| 1 |
0.3878 (6.147) |
0.3459 (5.483) |
0.3064 (4.857) |
0.2693 (4.269) |
0.2346 (3.719) |
0.2023 (3.206) |
||

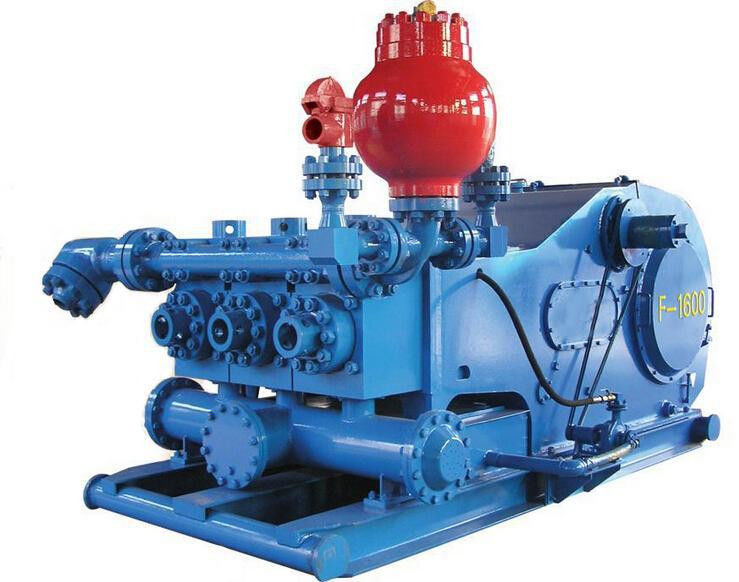

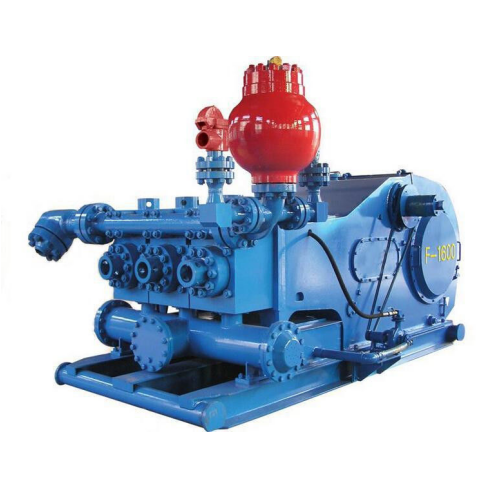

F-1600 Mud pump technical specification
| Type | Horizontal 3-cylinder single role piston pump | Gear Type | Herringbone gear | |||||
| Rated input power (KW/HP) | 1193/1600 | Gear driving ratio | 4.206:1 | |||||
| Rated stroke (time/min) | 120 | Lubrication | Forced and flashing | |||||
| Stroke length (mm/in) | 305/12" | Valve cavity | AP1-7# | |||||
| Suction side connection dimension | 12" (305mm) | Discharge side connection dimension | 5" Flange 5000psi | |||||
| The main machine weight (kg/pound) | 24572/54170 | The max. diameter of cylinder | Ø180/7" | |||||
| Stroke/Min. | Cylinder bush internal hole dia | Ø180 | Ø170 | Ø160 | Ø150 | Ø140 | Ø130 | |
| Rated pressure |
23.6 (3345) |
25.9 (3750) |
29.2 (4235) |
33.2 (4820) |
34.5 (5000) |
35.1 (5000) |
||
| Rated power | Displacement(L/S) (GPM) | |||||||
| KW | HP | |||||||
| 130 | 1050 | 1408 |
50.42 (799) |
44.97 (713) |
39.83 (631) |
35.01 (555) |
30.50 (483) |
26.30 (417) |
| 120 | 969 | 1300 |
46.54 (737) |
41.51 (658) |
36.77 (583) |
32.32 (512) |
28.15 (466) |
24.27 (385) |
| 110 | 889 | 1192 |
42.66 (676) |
38.05 (603) |
33.71 (534) |
29.62 (469) |
25.81 (409) |
22.25 (352) |
| 100 | 808 | 1083 |
38.78 (614) |
34.59 (548) |
30.64 (485) |
26.93 (427) |
23.46 (372) |
20.23 (320) |
| 90 | 727 | 975 |
34.90 (553) |
31.13 (493) |
27.58 (437) |
24.42 (384) |
21.11 334) |
18.21 (288) |
| 1 |
0.3878 (6.147) |
0.3459 (5.483) |
0.3064 (4.857) |
0.2693 (4.269) |
0.2346 (3.719) |
0.2023 (3.206) |
||
