TWS600 Well Service Pump Packing
Kuofu equipment Provide SPM® Well Service Pump Packing
For use in the SPM® TWS 600S and QWS 1000S pumps for cementing, acidizing, and other well service applications.This offering is rated up to 20,000 psi.

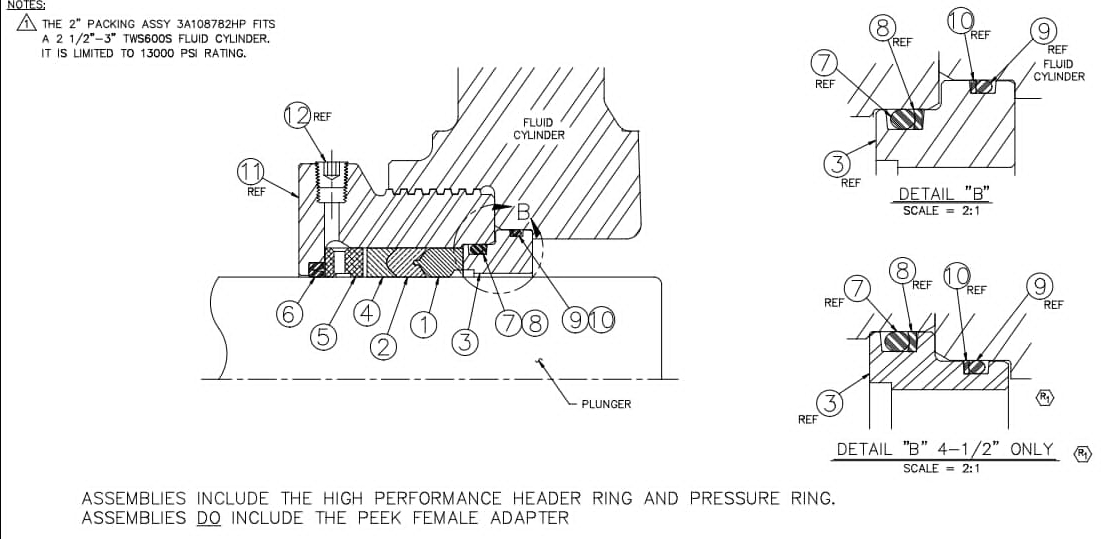

Drawing
General Service - Standard header and pressure rings for basic applications
Enhanced General Service - Pairs enhanced header rings with standard pressure rings for extended performance
HD Service - Enhanced Header Ring paired with a low profile extreme service pressure ring and low profile PEEK adapter
General Service |
||
Plunger Size |
Soft Set |
Complete Set |
| 2 1/2” | P139815 | 2A140366 |
| 2 3/4” | P139817 | 2A140369 |
| 3” | P139819 | 2A140372 |
| 3 ½” | P139821 | 2A140375 |
| 4” | P139823 | 2A140378 |
| 4 1/2” | P139825 | 2A140381 |
Enhanced General Service |
||
Plunger Size |
Soft Set |
Complete Set |
| 2 1/2” | P139827 | 2A140367 |
| 2 3/4” | P139829 | 2A140370 |
| 3” | P139831 | 2A140373 |
| 3 ½” | P139816 | 2A140376 |
| 4” | P139818 | 2A140379 |
| 4 1/2” | P139820 | 2A140382 |
HD Service |
||
Plunger Size |
Soft Set |
Complete Set |
| 2 1/2” | 2A121829 | 2A121830 |
| 2 3/4” | 2A121826 | 2A121827 |
| 3” | 2A121817 | 2A121818 |
| 3 ½” | 2A121151 | 2A121150 |
| 4” | 2A121805 | 2A121810 |
| 4 1/2” | 2A121812 | 2A121813 |
Make order according to parts number
