Mission magnum Centrifugal sand pump

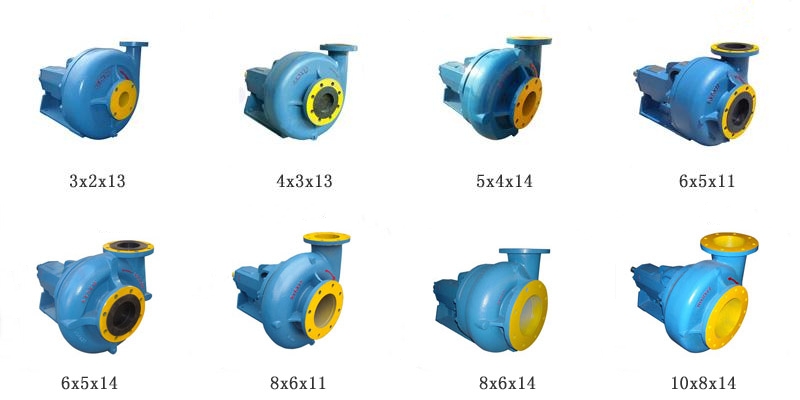

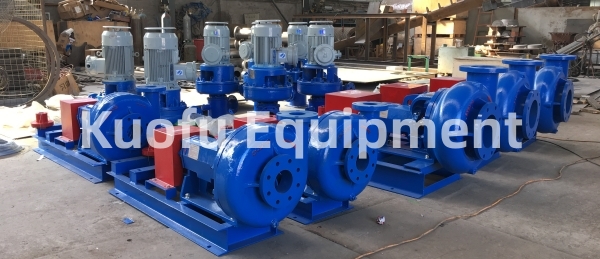

Kuofu® offers a complete line of centrifugal sand pumps to suit for all kinds of drilling sand pump application. Size ranges from 3x2x13, 4x3x13, 5x4x14, 6x5x11,6x5x14, 8x6x11,8x6x14, 10x8x14, 12x10x23 to 14x12x22b. Bare pumps, matching motors are available from 7.5KW to 90KW, with rotation 800, 1000, 1150,1450, 1750 to 3500 RPM at 50Hz or 60Hz.
info@kuofuequipment.com

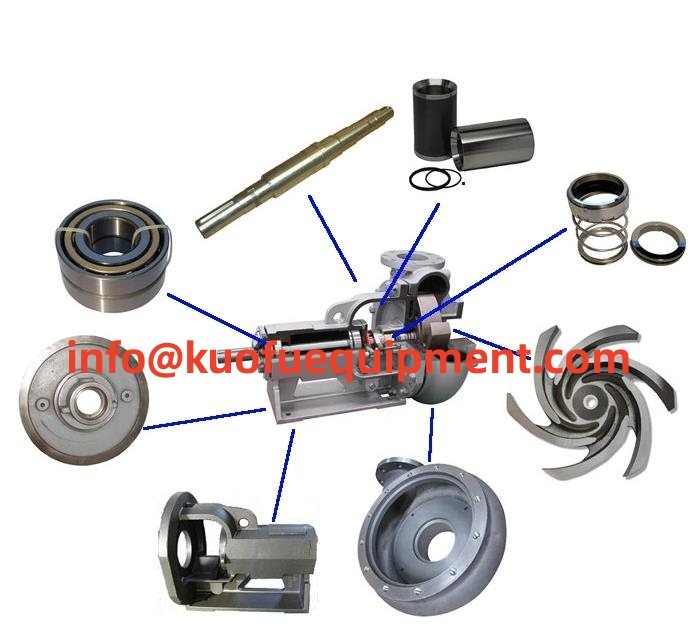

Some pump parts we can provide:housing,impeller,stf box and impeller,etc

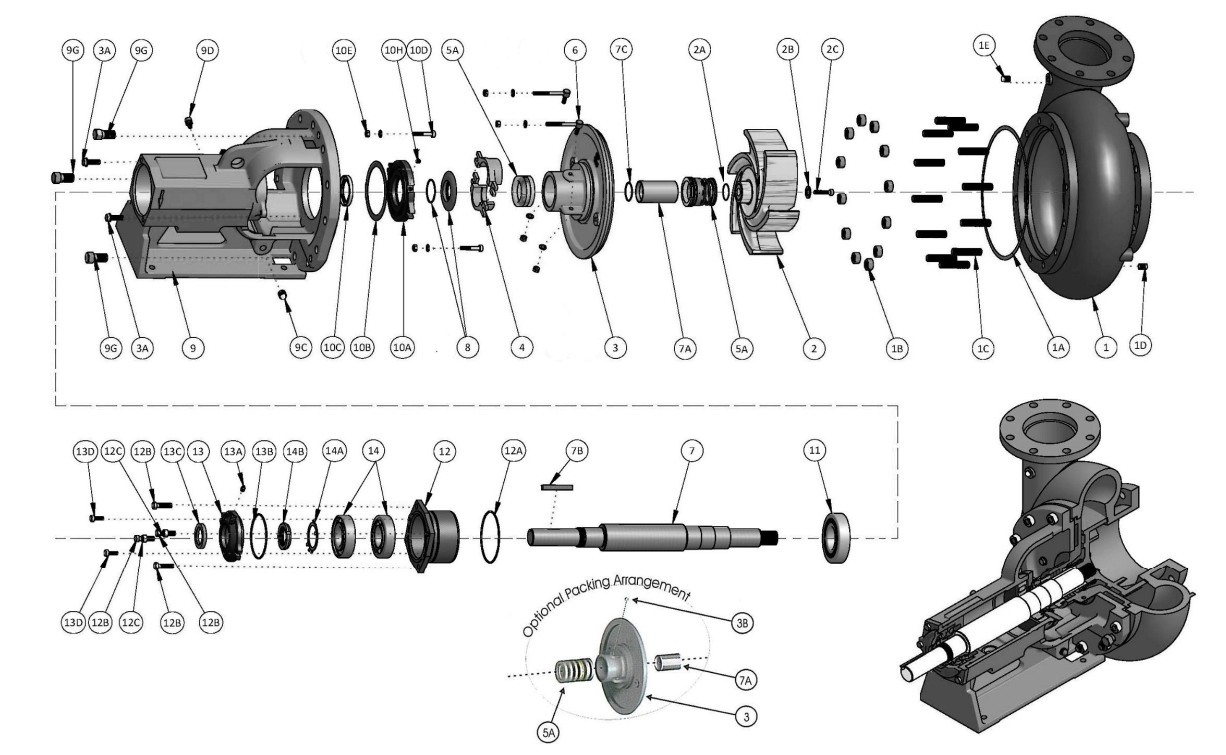

Spare Parts of Mission Centrifugal Pump
|
Item |
Qty |
Part No. |
Processing# |
Description |
Material |
|
1* |
1 |
See below |
See below |
Casing |
Hard iron |
|
1A |
1 |
10399-46-1 |
648403012 |
Gasket,casing |
Vellumoid |
|
1B |
12 |
3932-61 |
648402014 |
Nut,casing |
Stl |
|
1C |
12 |
3862-76 |
648401115 |
Stud,casing |
Stl |
|
1D |
1 |
8505-04-01 |
86485503 |
Plug,Casing Drain |
Stl |
|
1E |
1 |
8505-04-01 |
646400507 |
Plug,flush line |
Iron |
|
2* |
1 |
See below |
See below |
Impeller |
Hard iron |
|
2A |
1 |
19110-72 |
64845082 |
Seal,impeller |
Viton |
|
2B |
1 |
|
7300239 |
Washer,impeller |
Stl |
|
2C |
1 |
|
7415648 |
Bolt,impeller lock |
Stl |
|
3* |
1 |
22223-01-30 |
641116157 |
Stuffing box,mech.seal |
Hard iron |
|
3* |
1 |
20614-01-30 |
643365042 |
Stuffing box,packed |
Hard iron |
|
3A |
2 |
3861-117 |
648401016 |
Bolt,stuffing box |
Stl |
|
3B |
1 |
19368-01 |
601499403 |
Grease fitting |
Brass |
|
4 |
1 |
20622A |
641103338 |
Gland assy,packing |
Stl 304 |
|
5A# |
1 |
22451-1 |
648414308 |
Seal,mechanical |
Tungsten |
|
5A# |
3 |
25014-04M-B |
661007005 |
Packing, Shaft |
Kevlar |
|
6 |
2 |
B3701A |
601102494 |
Bolt assy,gland |
Stl 304 |
|
7 |
1 |
20612-02-33 |
646490557 |
Shaft |
42CrMo |
|
7A |
1 |
20943-21 |
641102182 |
Sleeve,shaft,M.S. |
38CrMoAl |
|
7A |
1 |
20613-21G-7A |
641102181 |
Sleeve,shaft,Pack |
Stl |
|
7B |
1 |
903022 |
601212392 |
Key,shaft |
Stl |
|
7C |
1 |
23444-01-72 |
648415156 |
Seal,shaft sleeve |
Viton |
|
8 |
1 |
22210-1A |
641116108 |
Deflector assembly |
Composite |
|
9 |
1 |
20618-12-1 |
644302499 |
Frame,grease lubricated |
Cast iron |
|
9A |
1 |
8505-05 |
601474737 |
Plug,oil drain |
lron |
|
9B |
3 |
2538-1H |
|
Bolt,casing jack |
lron |
|
9C |
1 |
8505-05 |
601474737 |
Plug, Frame Drain |
lron |
|
10A |
1 |
20626 |
644303109 |
Cover,inboard bearing |
Iron |
|
10B |
1 |
20625 |
648408706 |
Gasket,I.B.Brg.Cover |
Vegetable fiber |
|
10C |
1 |
20619-01 |
648408300 |
Oil seal, I.B.Brg.Cover |
Buna-n |
|
10D |
2 |
716243 |
601407505 |
Bolt, I.B.Brg.Cover |
Stl |
|
10E |
2 |
742205 |
601408560 |
Nut, I.B.Brg.Cover |
Stl |
|
10F |
1 |
21641-01 |
661010033 |
Grease fitting |
Brass |
|
11 |
1 |
20615-1 |
- |
Bearing,inboard |
Vendor |
|
12 |
1 |
20624-01-01 |
644308504 |
Housing,O.B.bearing |
Iron |
|
12A |
1 |
7496-253 |
648402295 |
Seal, O.B.Brg.housing |
Buna-n |
|
12B |
4 |
3861-138 |
648401057 |
Bolts, O.B.Brg.housing |
Stl |
|
12C |
2 |
3932-62 |
658404702 |
Nut, O.B.Brg.housing jam |
Stl |
|
13 |
1 |
20617-01-01 |
641103296 |
Cover,O.B.Bearing |
Iron |
|
13A |
1 |
19368-01 |
661010020 |
Grease zerk, O.B.Brg.Cover |
Brass |
|
13B |
1 |
7496-26 |
72200017 |
O-ring, O.B.Brg.Cover |
Buna-n |
|
13C |
1 |
20619-02 |
648408359 |
Oil seal, O.B.Brg.Cover |
Buna-n |
|
13D |
2 |
3861-139 |
648401081 |
Bolt, O.B.Brg.Cover |
Stl |
|
14 |
2 |
20616-1 |
648408201s |
Bearing, O.B. |
Vendor |
|
14A |
1 |
6124-4 |
648402105 |
Lockwasher,O.B.Bearing |
Stl |
|
14B |
1 |
6123-4 |
648402055 |
Locknut, O.B.Bearing |
Stl |
|
CASINGS ( including studs, nuts and gaskets) |
|||||
|
Item |
Qty |
Part No. |
Processing# |
Description |
Material |
|
1* |
1 |
19203-01-30A |
641101753 |
Casing,3×2×13 |
Hard iron |
|
1* |
1 |
19205-01-30A |
641101902 |
Casing,4×3×13 |
Hard iron |
|
1* |
1 |
19222-01-30A |
641102058 |
Casing,5×4×14 |
Hard iron |
|
1* |
1 |
641101456 |
Casing,6×5×11 |
Hard iron |
|
|
1* |
1 |
19123-01-30A |
641101605 |
Casing, 6×5×14 |
Hard iron |
|
1* |
1 |
19763-01-30A |
641102157 |
Casing, 8×6×11 |
Hard iron |
|
1* |
1 |
19763-01-30A |
641101308 |
Casing,8×6×14 |
Hard iron |
|
1* |
1 |
20937-01-30A |
641102322 |
Casing,10×8×14 |
Hard iron |
|
IMPELLERS |
|||||
|
Item |
Qty |
Part No. |
Processing# |
Description |
Material |
|
2* |
1 |
19204-XX-30 |
641215603 |
Impeller,3×2×13 |
Hard iron |
|
2* |
1 |
641217005 |
Impeller,4×3×13 |
Hard iron |
|
|
2* |
1 |
19224--XX-30 |
641217831 |
Impeller,5×4×14 |
Hard iron |
|
2* |
1 |
19121-XX-30 |
641211602 |
Impeller,6×5×11 |
Hard iron |
|
2* |
1 |
19121-XX-30 |
641212105 |
Impeller, 6×5×14 |
Hard iron |
|
2* |
1 |
19121-XX-30 |
641211602 |
Impeller, 8×6×11 |
Hard iron |
|
2* |
1 |
641209903 |
Impeller,8×6×14 |
Hard iron |
|
The model 10x8x14 and 8x6x14 centrifugal magnum pump used on solid control system over 3000 meter-long drilling rigs, with big viscosity and heavy specific gravity drilling fluid. 8x6x11 centrifugal mud solid control feeding pump applies to under 3000 meter-long drilling rigs, and it also can be used to supply mud to triplex mud pump as a filling pump. 6×5×11 centrifugal pump applies to truck-mounted drilling rigs or pocket drilling rigs. 4x3x13 drilling centrifugal pump is usually used as measuring pump or replenishment pump. 3x2x13 model pump is usually used as clean water pump.
