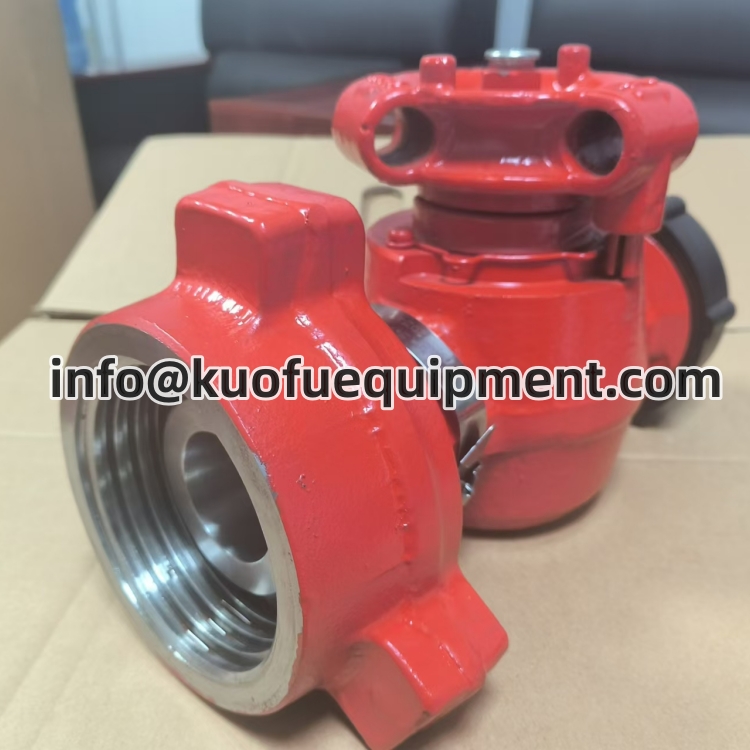

Fig 1502 plug valve
KUOFU provide API 6A standard Plug Valve with standard Male and Female end connections, and a standard service rating up to 15000psi NSCWP. Plug valve provides flow control for oilfield applications such as cementing, fracturing, aciding, coiled tubing, sand control, and manifold trailers. Manual and Hydraulic operation available for standard and sour gas application. To meet the level standard of PLS3 and PR2, and can be interchangeable with SPM’s products.
KUOFU low torque and high pressure plug valve are made of high quality and high strength structural alloy steel. Strict heat treatment ensures even metallographic structure and loading capacity. The materials completely conform to USA ASTM and AISI standards and to be produced according to API Spec 6A. The connection available in LP thread, Tubing thread, butt weld, and non-pressure sealing end.
Specification
Size:
1” Plug Valve Low Torque (1 x 1) Male x Female FIG1502
1” Plug Valve Low Torque (1 x 2) Male x Female FIG1502
2” Plug Valve Low Torque (2 x 2) Male x Female FIG1502
3” Plug Valve Low Torque (3 x 3) Male x Female FIG1502
Cold working pressures: 42Mpa (6000Psi), 70Mpa (10000Psi), 105Mpa (15000Psi).
Connection type: hammer union (Fig.602, Fig.1002, Fig.1502 MXM, MXF, and FXF), LP female thread and LP external thread and the plug valve with bottom base can be designed upon the client’s request.
Plug Valve Repair Kit Interchangeability

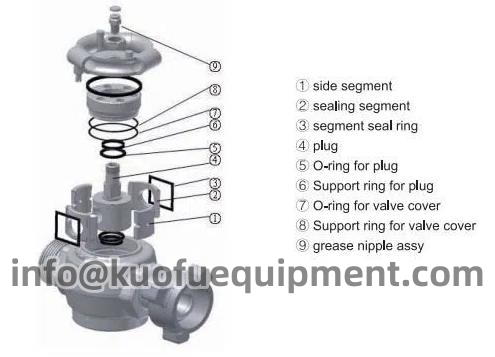

Plug valve repair kits can be provided for standard service, or low temperature and sour gas condition. These repair kits are replaceable and interchangeable for Weir SPM™, FMC™ 2” and 3” DR plug Valve, which is including plug, seal segment, side segment, elastomer seals, and grease fittings in drawing no. of 9, 10,11,12,13,14,15,16 and 21.

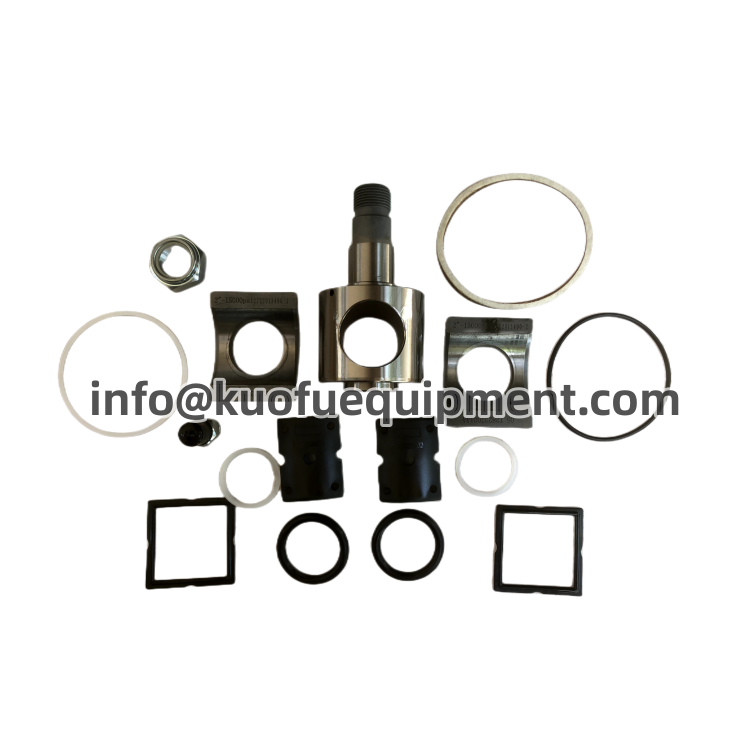

SPM/SJ type plug valve repair kit

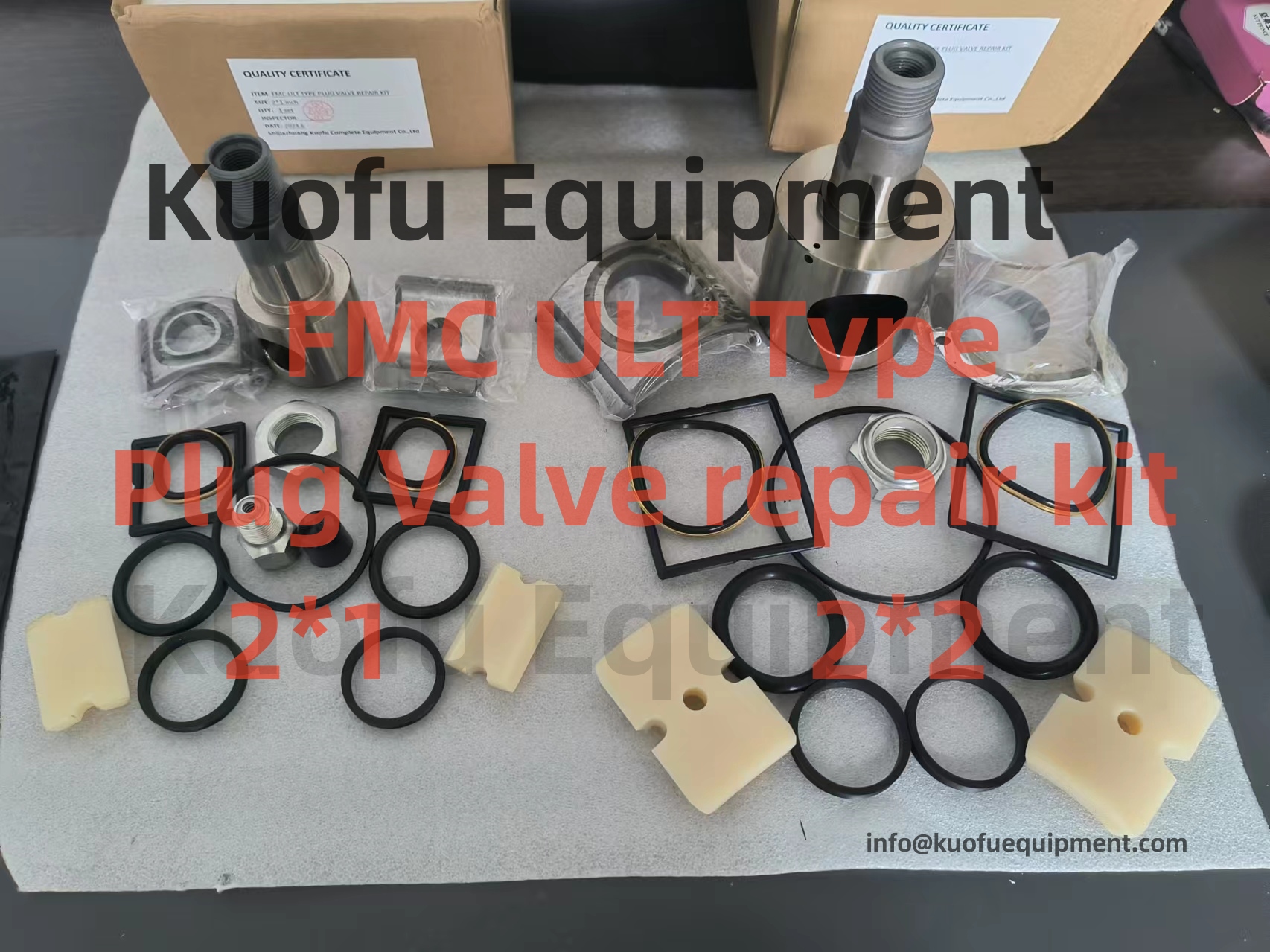

FMC ULT type plug valve repair kit

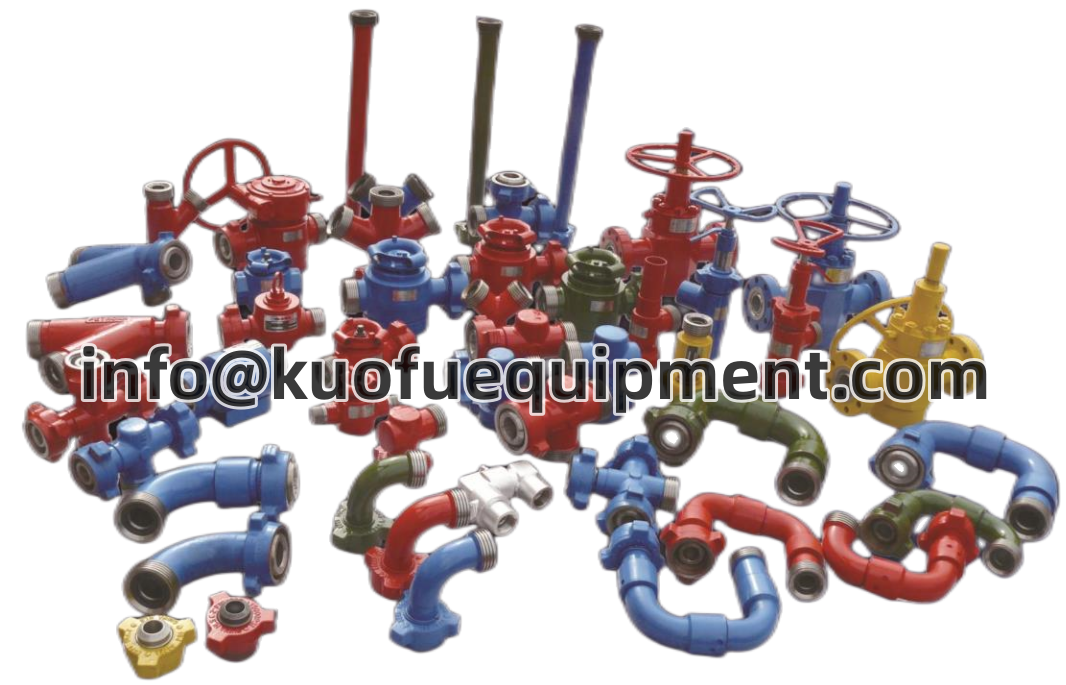

Other high pressure flow iron we can Provide
(Plug Valve,Hammer Union ,Relief Valve,Swivel Joint,Pup Joint,Pup Joint,Check Valve,Integral Fittings,Chock Valve,Ellow,Manifold,Etc)
