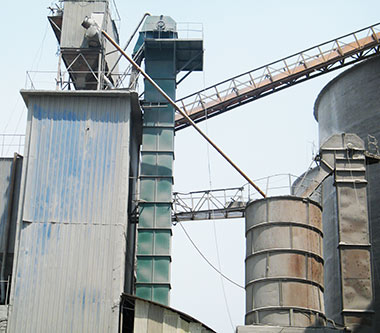

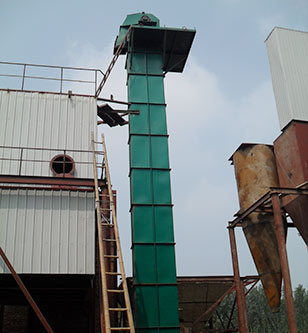

TH type Bucket Elevator
Description
TH type Bucket Elevator is a chain vertical ideal equipment and is widely used in mining, metallurgy, building materials, chemical industry, etc. It can be used in 150 ℃ ambient temperature.
1.Platform type: Equipped with type ZQ reducer, driven with inverted device effectively prevent batch turning. Traction is a high strength low alloy steel chain, with reasonable tensile strength after heat treatment with high hard wearing and long using life.
2.ZH Type(Middle deep bucket)：Suitable for conveying more wet, agglomeration, more difficult to throw material，such as wet sand, fertilizer, soda powder
3.Deep hopper: Suitable for conveying drying of loose, easy to throw the materials, such as cement, clinker, gravel, coal, and so on.
4.The maximum lifting height for TH type bucket elevator is 40M.
5.Technical Parameter
| Model of bucket elevator | TH250 | TH315 | TH400 | TH500 | TH630 | |||||||
| Model of buckets | ZH | SH | ZH | SH | ZH | SH | ZH | SH | ZH | SH | ||
| Capacity | m3/h | 30 | 48 | 33 | 53 | 52 | 83 | 68 | 110 | 106 | 173 | |
| Hopper | Bucket volumn | L | 3 | 4.6 | 3.75 | 6 | 5.9 | 9.5 | 9.3 | 15 | 14.5 | 23.6 |
|
Pitch of buckets |
mm | 512 | 688 | |||||||||
| Chain | Dia.×pitch | mm | ￠18×64 | ￠22×86 | ||||||||
| Speed of bucket | m/s | 1.25 | 1.4 | |||||||||
| Speed of chain | rpm | 46.8 | 42.5 | 37.6 | 35.3 | 31.8 | ||||||
| mm | 25 | 35 | 40 | 50 | 60 | |||||||
