SPM QWS2500 QUINTUPLEX PUMP

SPM QWS2500 QUINTUPLEX PUMP

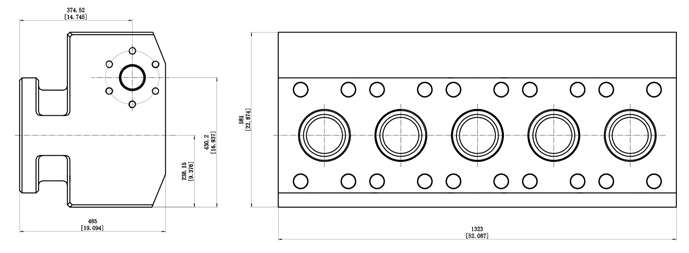

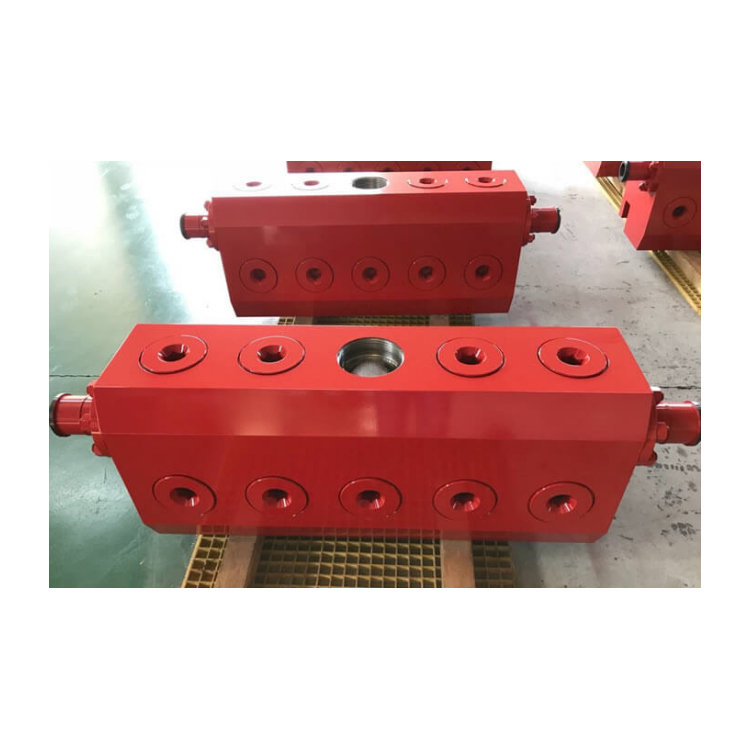

QWS 2500 fluid end is designed and manufactured to handle the harshest frac applications.

Bare block and fluid end all can Interchangeable with SPM Orignal.

Material: Carbon Steel/Stainless Steel

Plunger No.: 5 Plunger size: 4”,4.5”,5”,5.5”,6”, 6.5”

Load Weight: 4,800LB

Approx. Size: 52”x19”x23”(LXWXH)

We can supply the Spare Parts for the Pump Models as follow:

SPM Triplex and Quintuplex Pumps:

TWS 600 ,TWS 2000, TWS 2250 , QWS1000 , QWS 2500, QWS 2800

Halliburton HT400 plunger pump

Serva TPA600 pump, TPA-400 plunger pump ,TPB-600 plunger pump.

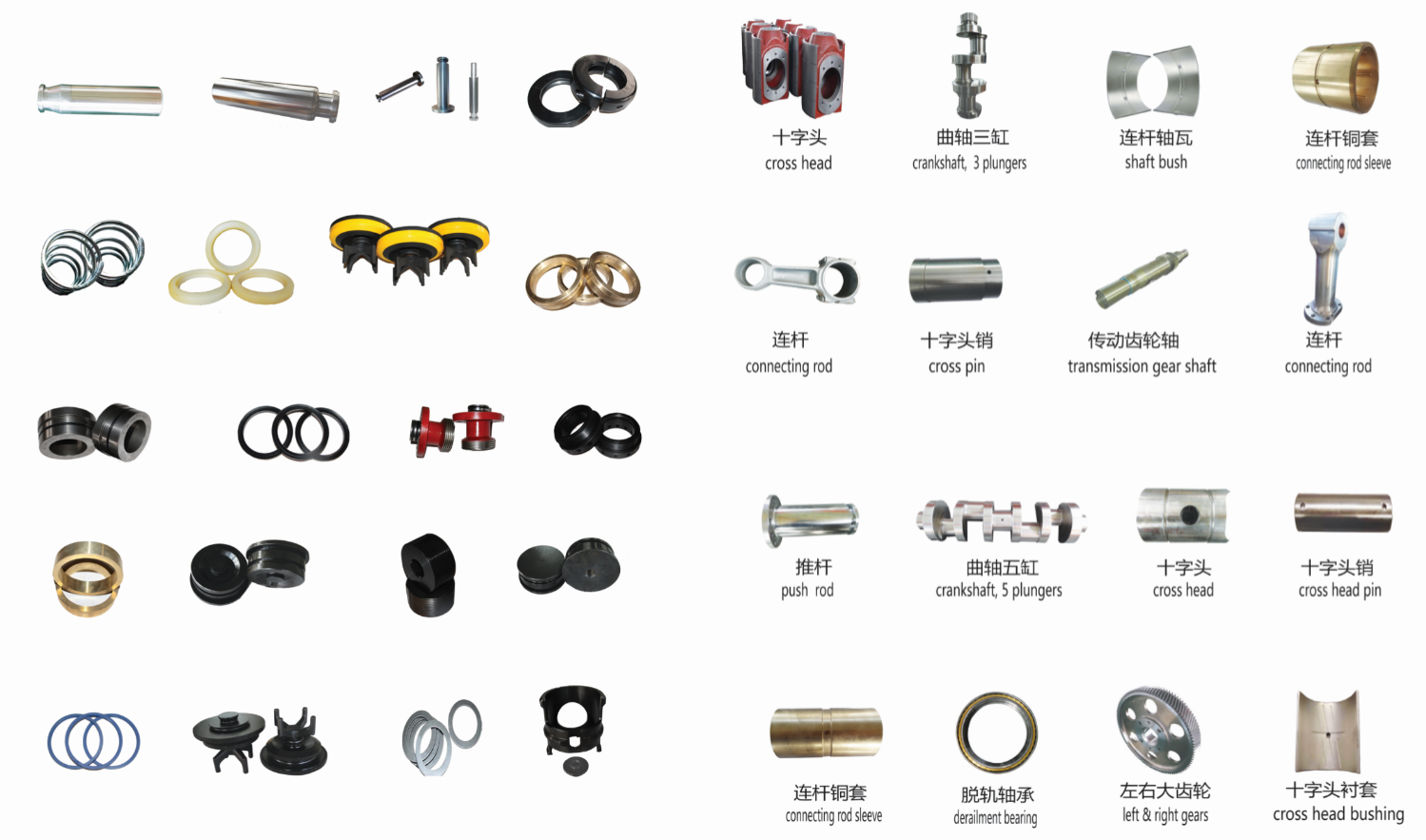

Power ends:Cross head, connecting rod, bearings, bull gears and shaft, crankshaft.

Fluid ends:Plungers, Valves&seats, packing, retainers, flange, etc
