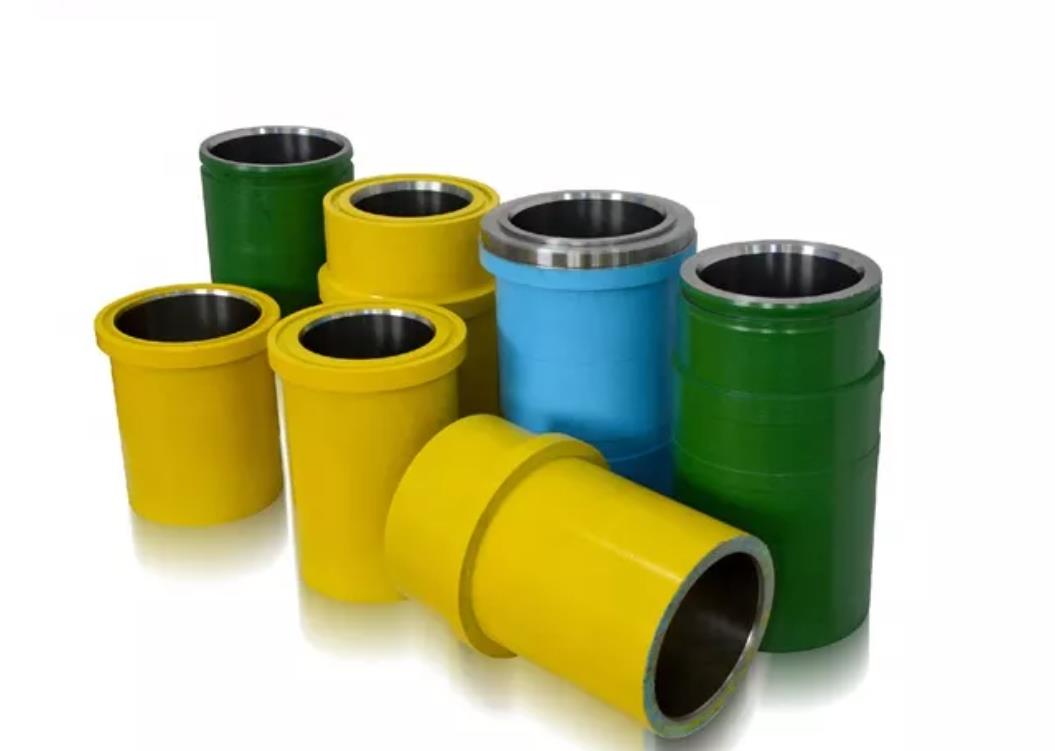

Drilling mud pump liner
Description
Kuofu provide drilling mud pump liners for many sorts of Drilling mud pumps.
Bi-metal Liners
• Hi-chrome liners made with a high chrome sleeve in a forged steel hull
• The bore hardness is 60 to 65 hrc
• Service life more than 800 hours under the normal condition
Ceramic Liners
• Suitable for deep oil reservoir, hard stratum and severe earthiness, offsore oil and natural gas exploitation
• Service life more than 4000 hours under the normal condition
• Wear-resistance, Erosion-resistance, High-pressure-resistance, High- temperature-resistance
• High strength and high hardness
• Reduce piston wear and water consumption for lubrication
Size in metric from 100mm to 180mm;
Size in inches from 3" 3 1/2" 4 4 1/2" 5" 5 1/2" 6" 6 1/4" 6 1/2" 6 3/4" 7" 7 1/4" 7 1/2".
ALL SIZE According to different mud pump type.
| BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600HL | F-1600L | F-2200HL |
| Hong Hua | HHF-500 | HHF-800 | HHF-1300 | HHF-1600 | 3NB-1600F | 5NB-1600 | 5NB-2400 | |
| HRSB | RSF-1300 | RSF-1600 | ||||||
| RG | RGF-800 | RGF-1000 | RGF-1300 | RGF-1600 | ||||
| Lanzhou | 3NB1000C | 3NB1300C | 3NB1600F | 3NB1600L | ||||
| EMSCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | FD-1000 | FC-2200 | FB-1300 |
| Gardner Denver | PAH | P7 | P8/9 | P10/11 | ||||
| National | 7-P-50 | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-200 | 14-P-220 | |
| Oilwell | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||||
| TSC | WF-500 | WF-800 | WF-1000 | WF-1300 | WF-1600 | WF-2000 | WF-2200 | |
| IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 | |||
| RUSSIA | UNBT-1180L | UNBT-950A | UNB-600 |
