Pup Joints Fig 1502 MF 105MPA

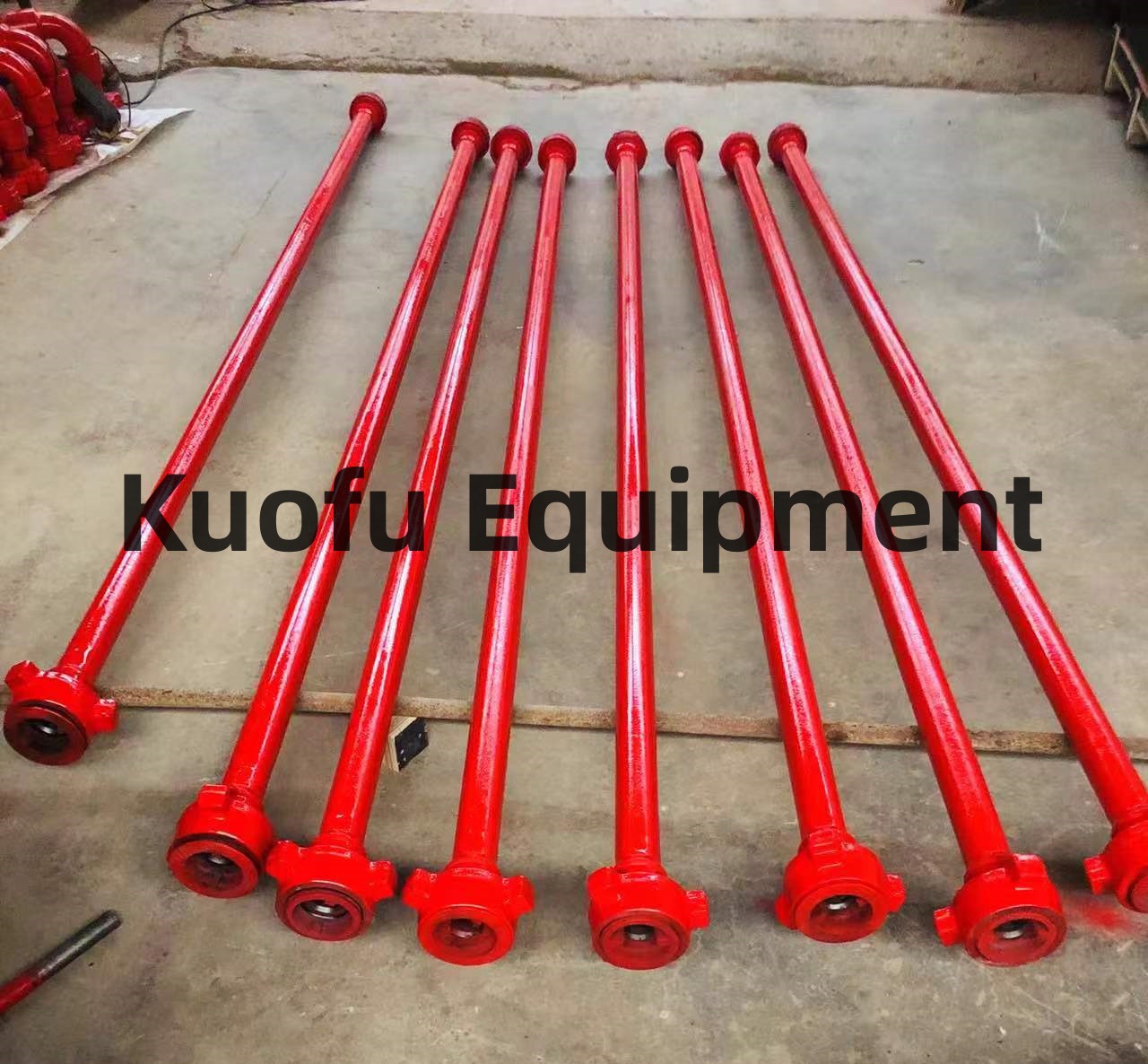

Pup Joints shipments

2 INCH Pup Joints Fig 1502 MF 105MPA

Pup Joints - Flowline Pipes

Pup joints (flowline pipes) are designed to be compatible with FMC Chiksan pup joints and SPM pup joints, based on techlonogies imported from FMC pup joints.

Integral Pup Joints are available in lengths to 10 feet to handle fluids at cold working pressures to 15,000 psi. Sour gas pup joints are also available.

Available

Cold Working Pressure: from 6,000psi to 15,000psi
Nominal Pipe Size: 2" to 4"
End Connection: Fig 602, Fig 1002, Fig 1502
Sour gas service are available

Description	End Connection	Cold WP	Diameter (inch)
Description	End Connection	Cold WP	1-1/2"	2"	3"	4"
Integral Pup Joints	FIG 602	(6,000psi 42Mpa)	y	y	y
	FIG 1002	10,000psi (70Mpa)	y	y	y
	FIG 1502	15,000psi (105Mpa)	y	y	y
Integral Pup Joints for sour gas service	FIG 602	5,000psi (35Mpa)	y	y	y
	FIG 1002	7,500psi (53Mpa)	y	y	y
	FIG 1502	10,000psi (70Mpa)	y	y	y
Welded Pup Joints	FIG 602	6000psi (42Mpa)		y	y	y
	FIG 1002	10,000psi (70Mpa)	y	y	y	y
	FIG 1502	15,000psi (105Mpa)	y	y	y	y

Standard Service, Figure 602, CWP 6000 Psi, 2" Integral Pup Joint

Standard Service, Figure 602, CWP 6000 Psi, 3" Integral Pup Joint

Standard Service, Figure 1002, CWP 1000 Psi, 2" Integral Pup Joint

Standard Service, Figure 1002, CWP 10000 Psi, 3" Integral Pup Joint

Standard Service, Figure 1002, CWP 10000 Psi, 4" Integral Pup Joint

Standard Service / Sour Gas (H2S), Figure 1502, CWP 15000 Psi, 2" Integral Pup Joint

Standard Service / Sour Gas (H2S), Figure 1502, CWP 15000 Psi, 3" Integral Pup Joint

Standard Service / Sour Gas (H2S), Figure 1502, CWP 15000 Psi, 4" Integral Pup Joint

Standard Service / Sour Gas (H2S), Figure 2202, CWP 20000 Psi, 2" Integral Pup Joint

Standard Service / Sour Gas (H2S), Figure 2202, CWP 20000 Psi, 3" Integral Pup Joint

Standard Service / Sour Gas (H2S), Figure 2202, CWP 20000 Psi, 4" Integral Pup Joint
